VPR400 RGB PCI-e GEN4 x4 M.2 SOLID STATE DRIVEVPR400 RGB PCI-e GEN4 x4 M.2 SOLID STATE DRIVEBuy Now
VPR400 RGB PCI-e GEN4 x4 M.2 SOLID STATE DRIVE

THE WORLD'S FIRST GEN4X4 RGB SSD

The VPR400 adopts the latest in PCIeGen 4x4 controllers and best-in-class for 3D NAND flash for supporting Intel's and AMD's newest platforms. With the Viper RGB Sync enabled, the VPR400 delivers blazing fast speeds of up to 4,600 MB/s read and 4,400 MB/s write speeds for a boost of 35% from Gen3x4 based SSDs. The VPR400 is hailed as the fastest RGB SSD on the market.

VPR400 RGB PCI-e GEN4 x4 M.2 SOLID STATE DRIVE

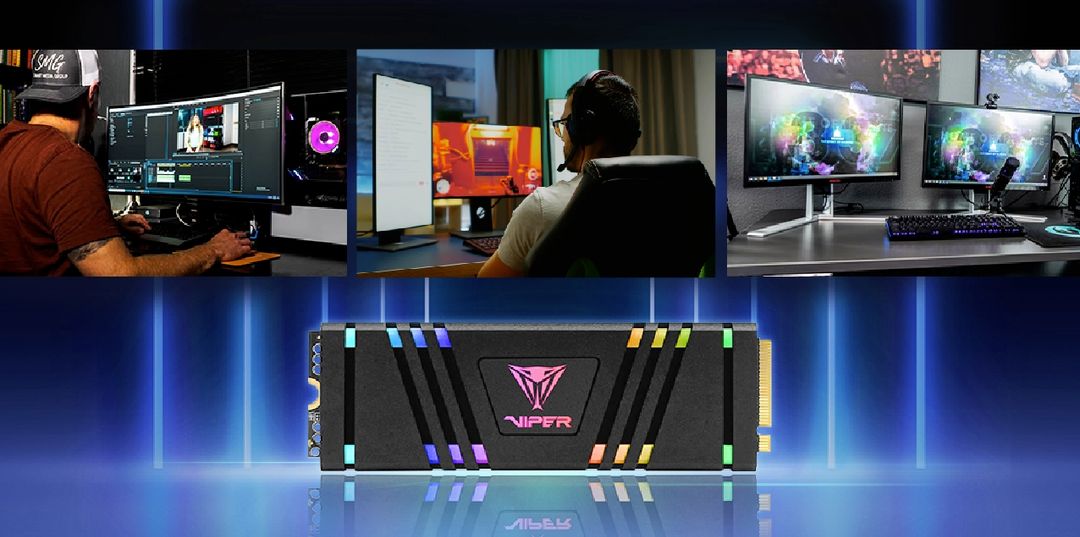

Viper Gaming is proud to present the VPR400, the world’s first Gen4x4 RGB M.2 SSD, featuring a combination of unbelievable performance and stunning aesthetics. Powered by the latest Innogrit IG5220 Gen4x4 controller and up to 1TB capacities, the VPR400 is sure to please any gaming, video, or PC enthusiast. The VPR400 is complete with advanced temperature control functions, unique low-profile heatsink design, and the Viper RGB 3.0 synchronization software for premier customization. The VPR400 is an SSD built simply for the best, by the best.

PERFORM WITH STYLE

Collaboration with the leading motherboard platforms during product development, the VPR400 has successfully minimized the performance reduction rate caused by RGB lighting to 10%. Users can have a combination of performance and good looks.

VPR400 RGB PCI-e GEN4 x4 M.2 SOLID STATE DRIVE
VPR400 RGB PCI-e GEN4 x4 M.2 SOLID STATE DRIVE

NO TRADEOFF FOR RGB LIGHTING

Users can also conveniently create their own lighting effects with other peripherals certified by leading motherboard vendors' application support, or with the VPR400 software available to download on the Viper website.

VPR400 RGB PCI-e GEN4 x4 M.2 SOLID STATE DRIVE

TOTAL LIGHTING CONTROL

The Viper RGB 3.0 Sync application provides users with stunning preset lighting modes. Users also have plenty of unique color customization options to fit any mood or aesthetic.

VPR400 RGB PCI-e GEN4 x4 M.2 SOLID STATE DRIVE
Notes:
● Actual performance may vary due to available SSD capacity, system hardware and software components, and other factors.
● The SSD is based on the TBW or Warranty period.
● Visit https://www.patriotmemory.com/patriot-memory-warranties-and-rma for more details.

Review & Awards

Viper Xtreme 5

Viper Xtreme 5 Non-RGB, 48GB, 8200MT/s Kit

Viper Xtreme 5 RGB, 48GB, 8000MT/s Kit

Viper Xtreme 5 RGB, 32GB, 8000MT/s Kit

Viper Xtreme 5 RGB, 32GB, 7800MT/s Kit

Viper Xtreme 5 RGB, 32GB, 7600MT/s Kit

Review & Awards

Viper Venom RGB, 32GB, 74000MT/s Kit

Viper Venom Non-RGB, 32GB, 7400MT/s Kit

Viper Venom Non-RGB, 16GB, 5600MT/s Kit

Review & Awards

Viper Elite 5 RGB, 32GB, 7000MT/s Kit

Viper Elite 5 RGB, 64GB, 6200MT/s Kit

Viper Elite 5 RGB, 96GB, 6000MT/s Kit

Viper Elite 5 RGB, 48GB, 6000MT/s Kit

Review & Awards

Review & Awards

Product Spec

Capacity

512GB / 1TB

Form Factor

M.2-2280

Interface

PCIe GEN4 x4

Controller

Innogrit IG5220 GEN4 x4

Model

VPR400-512GM28H
VPR400-512GM28H

Sequential Read

4,600 MB/s

Sequential Write

512GB - 3,600 MB/s
1TB - 4,400 MB/s

4k Aligned Random Read

600K IOPS

4k Aligned Random Write

500K IOPS

Total Bytes Written

512GB - 400TBW
1TB - 800TBW

Operating System

Windows®7*/8.0*/8.1/10
*May require drivers depending on system conditions

Features

Thermal Throttling Inverter Technology
VIPER RGB APP 3.0 Software
Aluminum Heat Sink

Warranty

5-year limited warranty

Firmware Updates

Affected Products

Release Note

Update Instructions

Download

Version

2023.07.28
1TB
H230407b
2023.07.28
2TB
H230407b

2023.07.28

Affected Products
1TB
Release Note
Update Instructions
Download
Version
H230407b

2023.07.28

Affected Products
2TB
Release Note
Update Instructions
Download
Version
H230407b

Download

Data Type

Download

Product Sheet
N/A
Product Image
Software
Viper RGB Software Toolbox
Compatibility List
N/A
Product Manual
N/A
SKU Sheet

Every Patriot product is tested to meet our advertised specifications. Patriot will not guarantee products meet advertised specifications when a single module is paired with another single module and operated as a dual kit. Patriot will not guarantee products meet advertised specifications when a dual kit is paired with another dual kit and operated as a quad kit. Patriot will not guarantee products meet advertised specifications if used in conjunction with other manufacturer’s memory module or kit, or in a system that may not operate at Patriot’s advertised specifications.
